Automatic Multifunctional Cartoning Machine of Cosmetics Ampoules and Teabag
Category: Case packer
Support max carton box width 190mm. Adopts the packaging form of automatic material feeding, carton opening, carton entrance, lot number printing, carton sealing and waste rejection, etc., its structure is compact and reasonable and its operation and adjustment are simple; Adopts servo/stepping motor, touch screen and PLC system, and the man-machine interface displays clearer and more convenient operation, has high degree of automation and is more humanized.
Product Detail
Product parameter
It is suitable for automatic packaging cartoning of big tray oral liquid, yolk pie, biscuit and other large-scale products. Accept max carton width 190mm
Main technical parameters:
|
Item/Model |
CX-190W-A |
|
Packaging rate |
30~80 cartons/min |
|
Carton size range |
L(100-300)mm×W(40-190)mm×H(30-80)mm |
|
Carton paper requirement |
300-400g/m3 |
|
Motor power |
2.1 kW |
|
Power supply type |
3-phase 4-line system, 380V 50Hz |
|
Machine noise |
≤80dB |
|
Air supply source |
0.5-0.8 MPa |
|
Air consumption |
150-200 L/min |
|
External dimensions |
3700×2200×1800 mm |
|
Overall weight |
1600 kg |

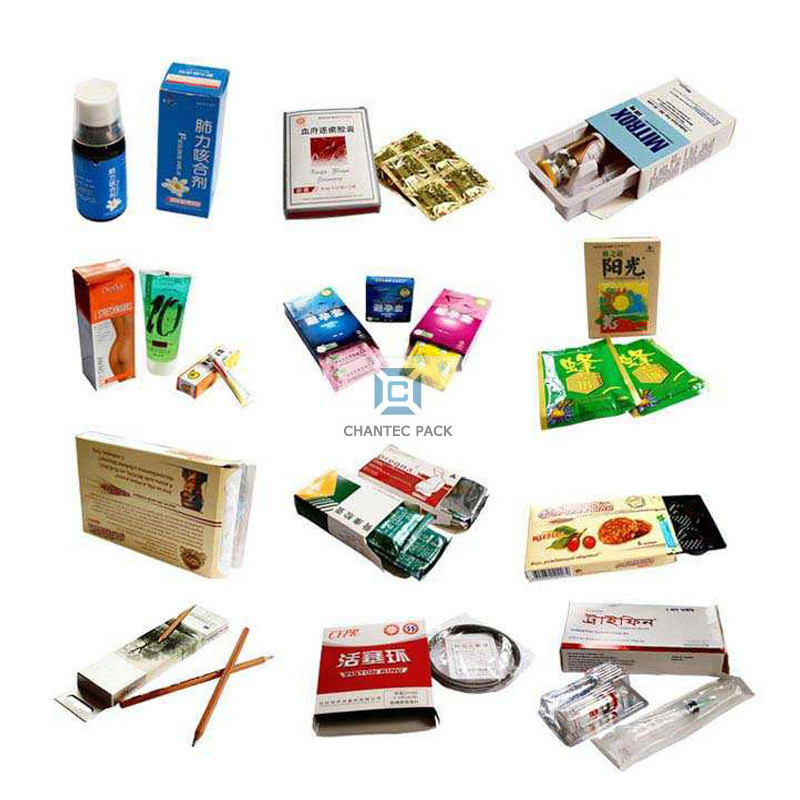

Pouch Drawings& Samples

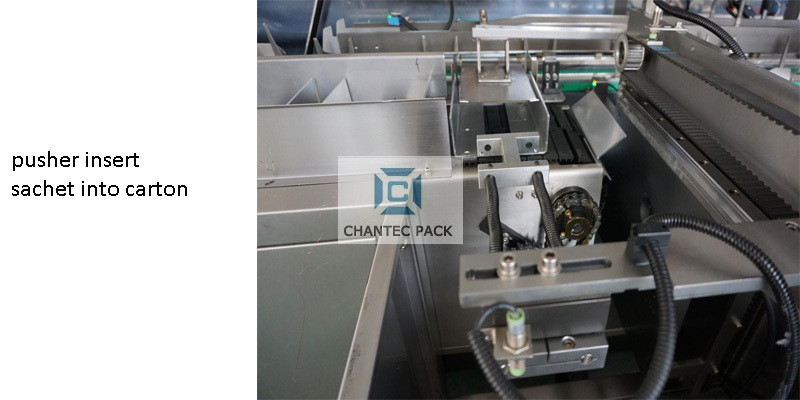

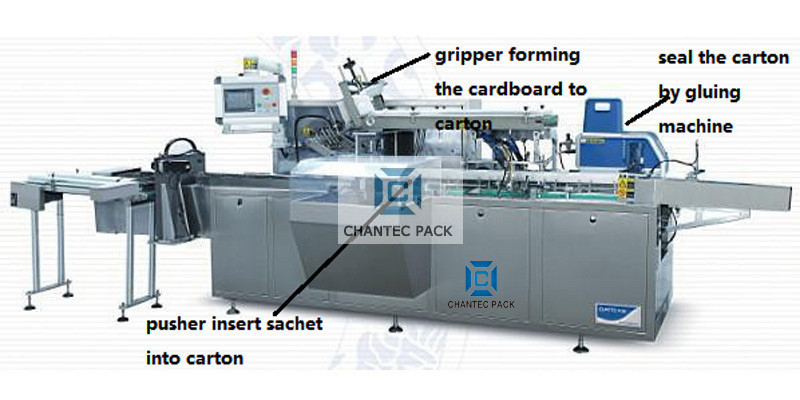

Machine Details
