CX-Y960 liquid or paste multi lanes four side bag packing packing machine
Category: VFFS packing machine
Application industry:<br/> sugar stick multi lane packing machine,coffee multi lane packing machine,shampoo multi lane packing machine,Paste multi lane packing machine,Ketchup multi lane packing machine.<br/> Max film width 960mm. support 4~12lanes 4side sealing stick<br/> Condition: New<br/> Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical<br/> Automatic Grade: Automatic<br/> Driven Type: Electric<br/> Voltage: 220V/380V<br/> Power: 4.5KW<br/> Place of Origin: Anhui, China<br/> Brand Name: Chantecpack<br/> Dimension(L*W*H): 1415*1686*2130mm<br/> Weight: 550KG<br/> Certification: CE<br/> Function: filling, packing, sealing<br/> Speed: Around 30cuts/lane/min<br/> Accuracy: 0.5-1.5%<br/> Material: Stainless Steel 304/316<br/> Warranty: 1 Year after arrive customer’s factory<br/> After-sales Service Provided: Engineers available to service machinery overseas
Product Detail
Product parameter
Max film width 960mm, designed for 3/4side sealing stick bag, 4~12lanes. Machine could combine with piston pump, suit for sticky liquid like ketchup, fruit jam, shampoo, hair conditioner, salad dressing, soy sauce, syrup and curry paste packing
Standard Features:
(1).Famous brand PLC control system,large touch screen,convenient to operate;

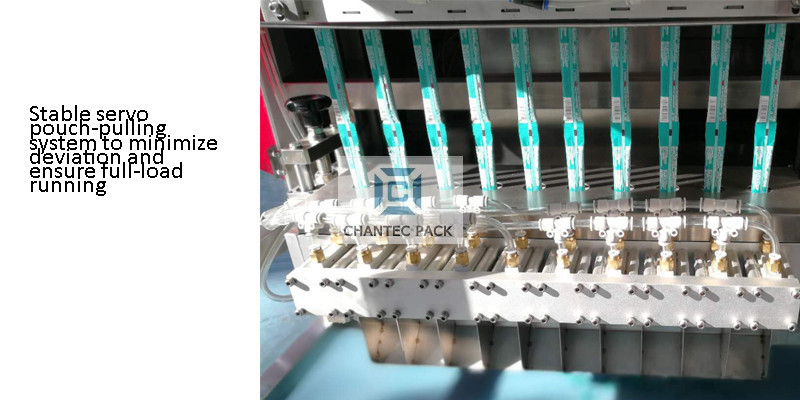

(2).Film drawing down system by famous bland servo motor control.

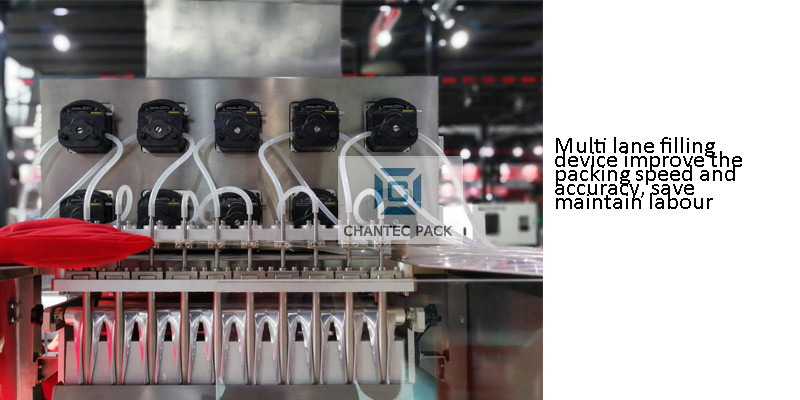

(3).Each lane dosing with each famous servo motor;
(4).Advanced design,high precision and fast speed;
(5).Various alarm system to reduce waste;
(6).Photoelectric tracking system for precise bag length and position of film
Technical Features:
|
Model |
CX-Y960 |
|
Application industry |
sugar stick multi lane packing machine coffee multi lane packing machine shampoo multi lane packing machine Paste multi lane packing machine Ketchup multi lane packing machine |
|
Max.film Width |
960mm |
|
Lanes |
4-12lane |
| Product Characteristic |
Granules, Powders, Liquids |
| Dosing System Compatible | Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler |
|
Packing speed |
Around 30cuts/lane/min |
|
Bag size |
L:45--120mm;W:35-120mm |
|
Film thickness |
0.07-0.10mm |
|
Max.film Width |
Max.960mm |
|
Sealing model |
3/4 side sealing |
|
Incision form |
1. Straight cutting; 2.Zig zag cutting; 3.Round cutting |
|
Air consumption |
0.8Mpa 0.8m3/min |
| Power |
5.5kw |
|
Machine weight |
550kg |
|
Machine size |
1415*1686*2130mm |

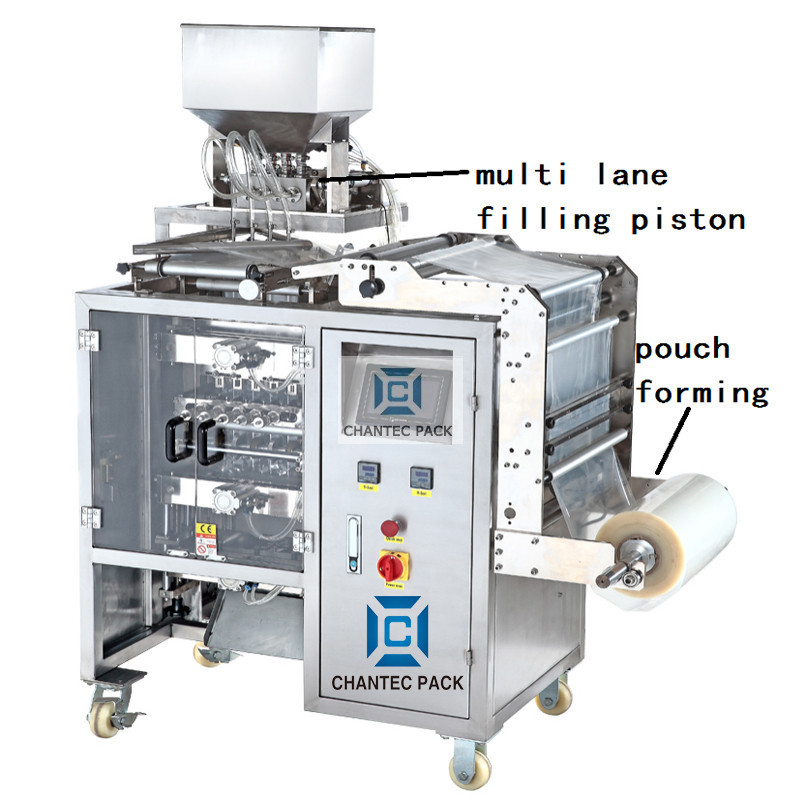

Machine details

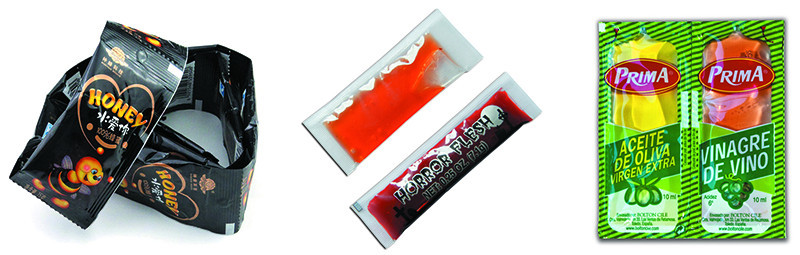

Pouch Drawings&Samples
