The machine will be used for packing different kinds of powders.
Main features and parameters
A wide range of pouches: Pillow and Gusset pouches.
High speed: max.90 bags/min
Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Frequency control: speed can be adjusted by frequency conversion within the range.
High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and hygiene
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
Machine Parameter:
1.Bag range:L:100-350mm W:100-260mm
2.Inner roll dia.:65mm
Max.outer roll dia.:450mm
3.Machine power:4.5kw
4.Power:220/380/415/440V 3P 50/60HZ
5.Compressed air pressure:0.6-0.8mpa,
6.Air consumption:0.3-0.4m³/min
7.Work temperature:-15℃-50℃
8.Running noise:≤80 decibel
9.Dimensional size:1800*1200*1680mm
10.Weight of the machine:960KG

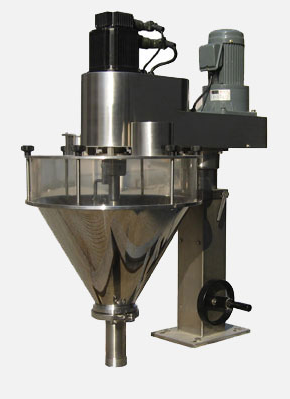

it can equip with the following weighing machine and elevators :
