Automatic 5-50kg Packing Bagging and Palletizing Machine
Category: 5-50kg open mouth bagging machine
Category: 5-50kg powder packing machine
Category: 5-50kg granule packing machine

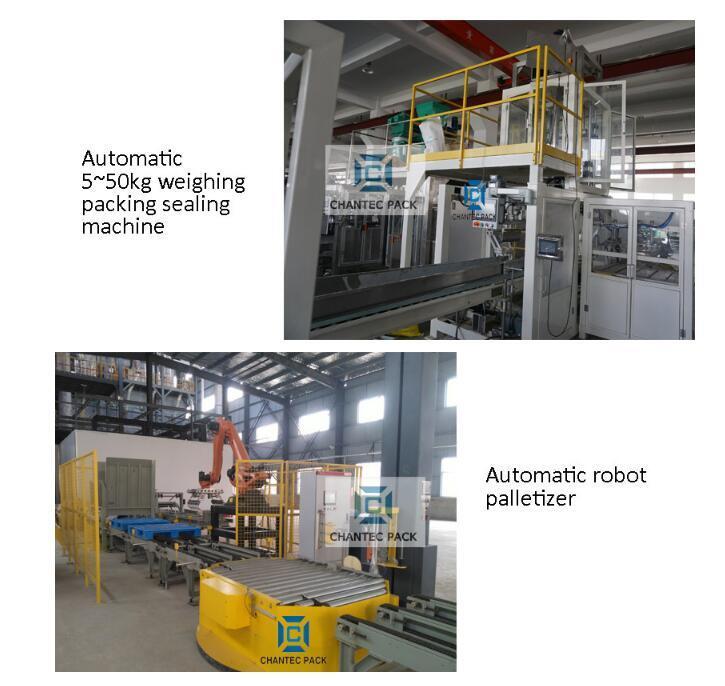

This machine is for granule automatic 5~50kg packaging,bagging&filling in premade PP woven bag(inner film coating)/ kraft bag, machine can be done for bag feeding and opening, granule weighing and filling, bag sewing, also have the function to put the paper after sewing. ABB/ KUKA robot would handle the palletizing. Now this model are widely used on sugar, salt, fertilizer, chemical, seeds, animal feed, seeds industry.
Product Detail
Product parameter
Working progress:
Filling and weighing machine → Automatic bag feeding &material auto filling → Bag automatic transferred by the conveyor → Auto bag Labeling and sewing → Finished bag → Palletizer
Technical parameters:
1.bag material: kraft paper bag,woven bag (coated with PP/PE film), plastic bag(film thickness should be more than 0.2mm)
2.Bag size: (630-830)*(350-450)mm (L*W)
3.Packing range: granular material 10kg-25kg
4.Packing speed: 6-12bags/min(according to packing material,bag size and etc)
Sealing method:
woven bag:bag mouth side folding /sewing together with glue
Kraft paper bag: heat sealing/sewing
Machine details
Laminated film bag: heat sealing
Keywords:
feed 10-50kg packing machine
fish powder packing machine
fertilizer 10-50kg packing machine
